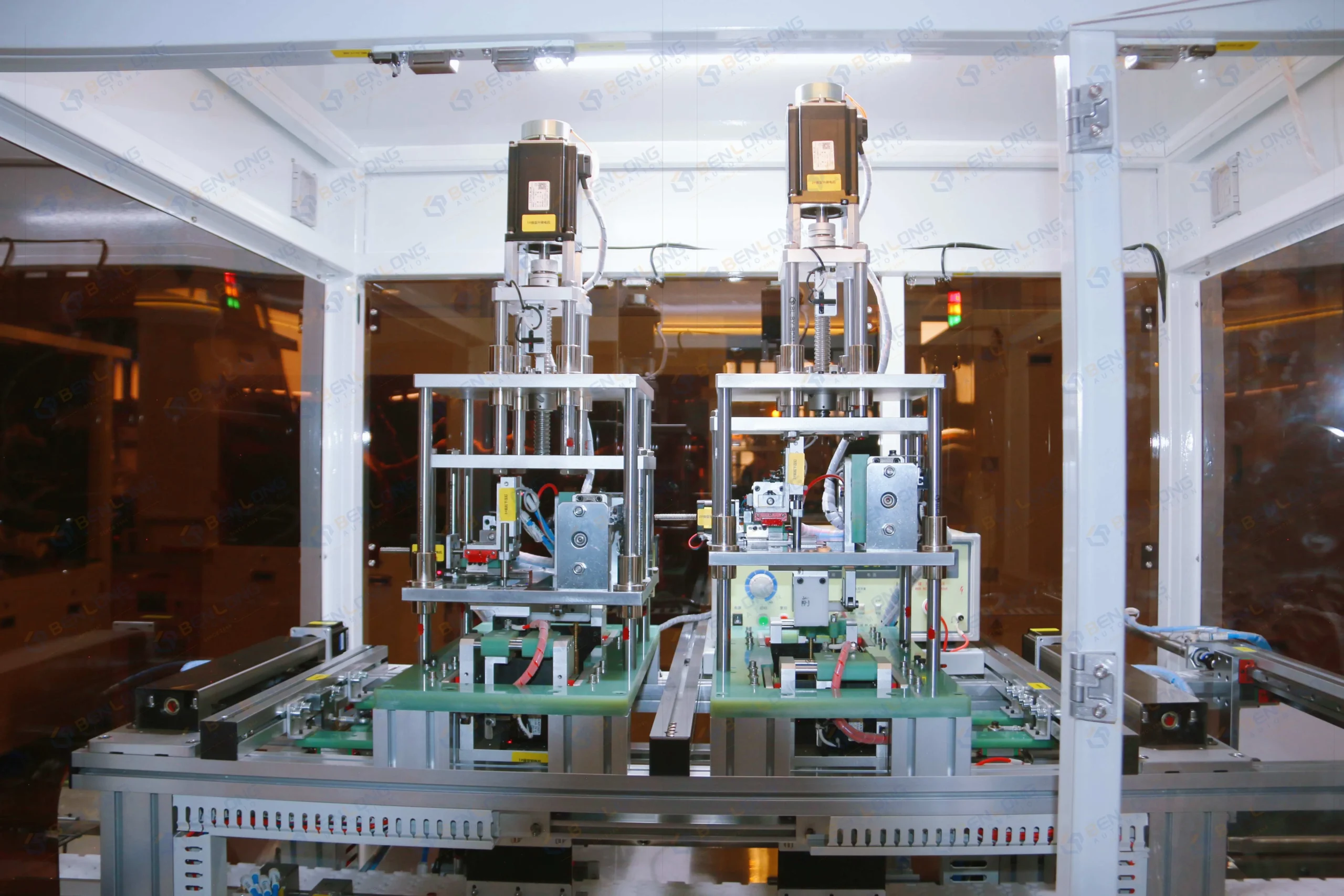

MCCB automatic production line

This line is engineered for the manufacturing of medium-to-large current Molded Case Circuit Breakers (MCCB). The system uses high-rigidity tooling and servo drives to ensure the precise alignment of the arc chute and contact system for high-current applications. Key line processes include automated riveting and strength verification of the molded case framework, along with torque calibration of the operating mechanism. All assembly steps are strictly controlled and logged by the automation system to guarantee the MCCB's industry-leading mechanical stability and high breaking capacity, fully meeting the IEC 60947-2 standard.

    Contact us
    Product Details

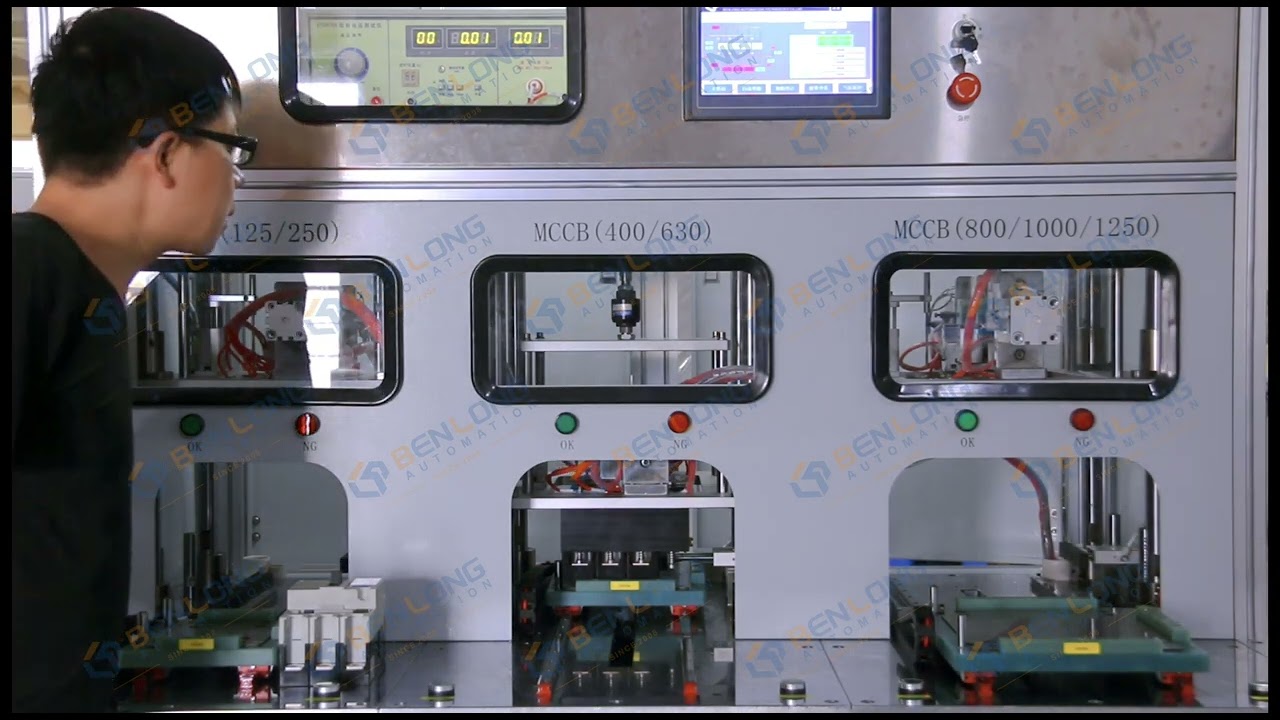

    Digital MCCB Smart Testing and Calibration Flexible Line

    This is a highly flexible MCCB core function testing line,specialized for intelligent products equipped with Electronic TripUnits (ETU). The line integrates high-precision programmablepower sources and high-speed data acquisition systems forrapid and accurate testing of tripping characteristic curvesacross various frame currents. The system automaticallyperforms digital calibration of the trip unit, functionalverification of communication modules (e.g., Modbus), andbreaking time tests. Deep integration with the MES systemensures traceability for all electronic trip parameters, providingrobust data support for the MCCB's reliable breaking andintelligent protection capabilities.
