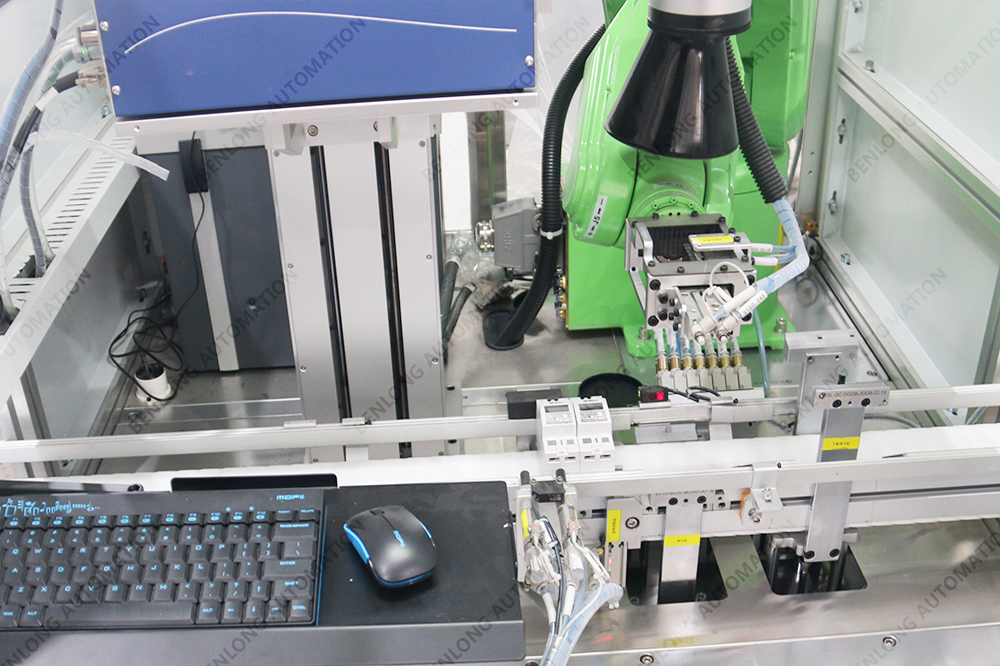

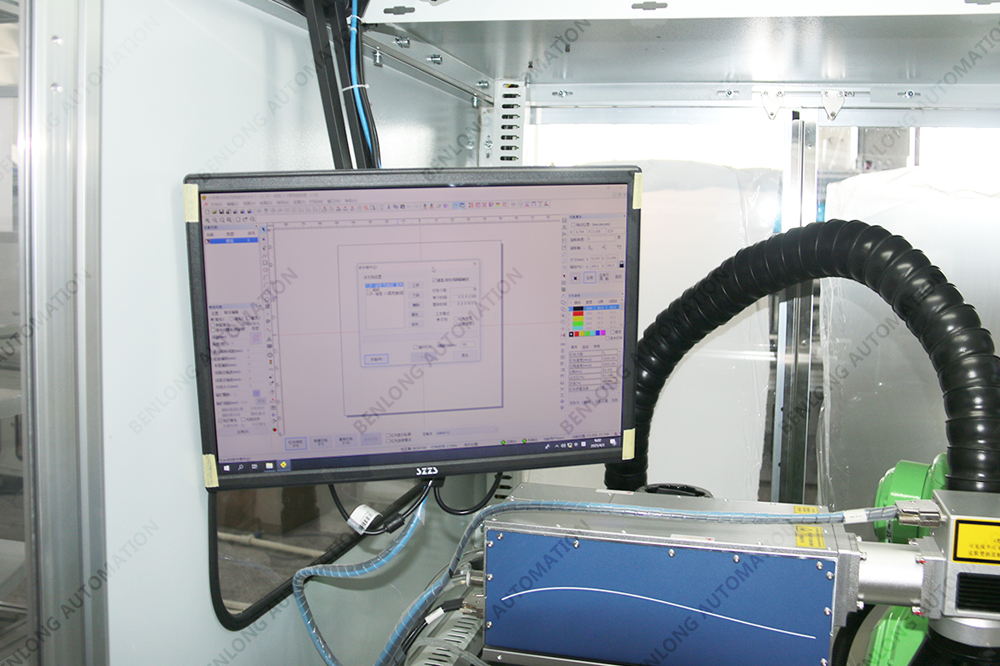

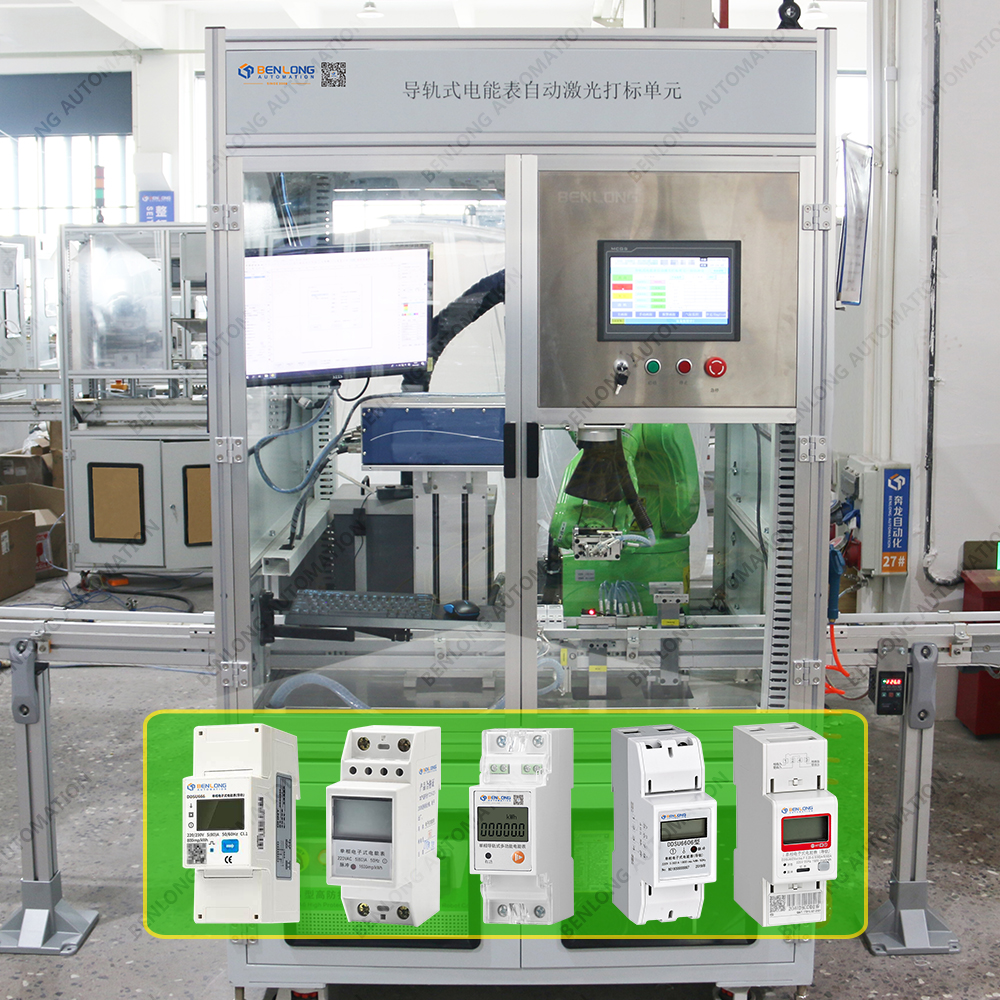

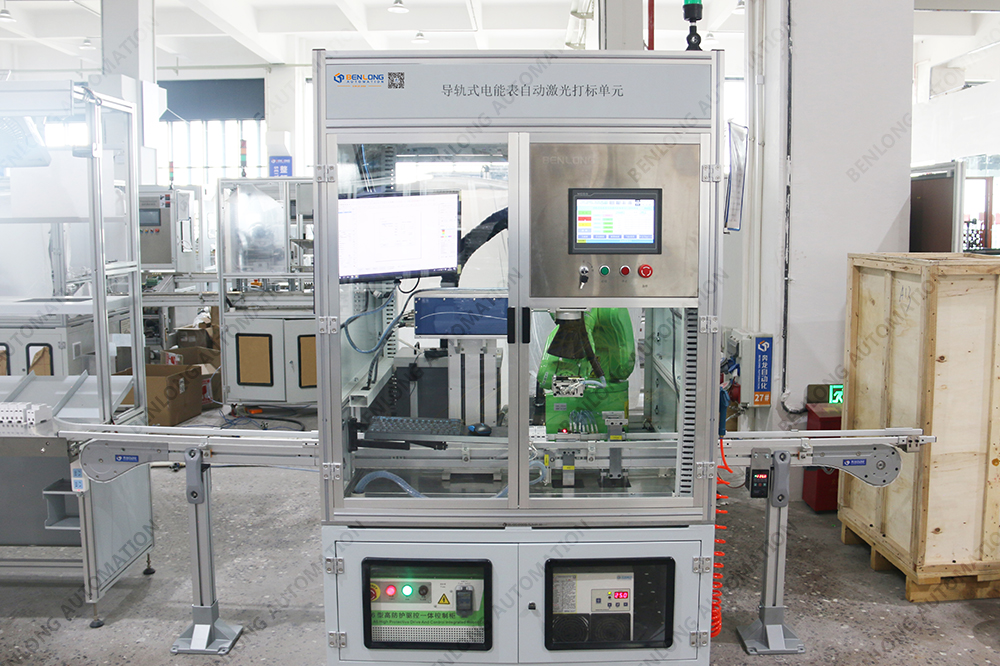

Single-phase rail-mounted electric energy meter automatic pad printing laser marking equipment

Automatic Marking

Automatically marking the energy meter housing, nameplate or specified position through programming or software control, without manual intervention, supporting assembly line integration.

It can automatically identify the product position (with visual positioning system) to realize accurate marking.

High-precision marking

Laser marking accuracy up to ±0.1mm, supports tiny characters (e.g. SN code, 2D code, barcode, LOGO, parameters, etc.), high clarity, permanent anti-wear.

Multi-content support

Text/numbers: production date, model, specification, serial number, etc.

Codes: 1D code, 2D code (e.g. Data Matrix), anti-counterfeit code.

Graphics: Brand LOGO, safety logo, certification mark, etc.

Material Adaptability

Suitable for common materials used in power meters: ABS plastic, metal plating, aluminum alloy, PVC, etc. No additional consumables (e.g. ink) are required.

1、Equipment input voltage 380V±10%, 50Hz; ±1Hz;

2、Equipment compatibility: State Grid/South Grid, single-phase energy meter series, three-phase energy meter series.

3, equipment production beat: 30 seconds / unit, and can be customized according to customer requirements.

4, the same shell frame products, different poles can be switched by one key or sweep code switching; switching different shell frame products need to manually replace the mold or fixture.

5、Assembly mode: manual assembly, automatic assembly can be optional.

6、Equipment fixture can be customized according to the product model.

7、Equipment with fault alarm, pressure monitoring and other alarm display function.

8, Chinese and English version of the two operating systems.

All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.

10、Equipment can be equipped with optional functions such as “Intelligent Energy Analysis and Energy Saving Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.

11、It has independent independent intellectual property rights.
