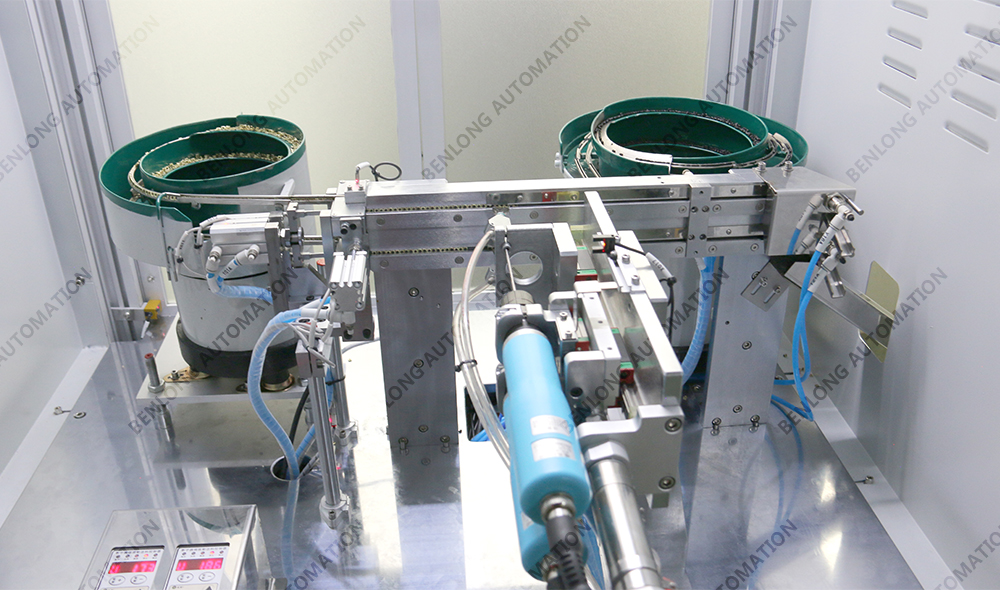

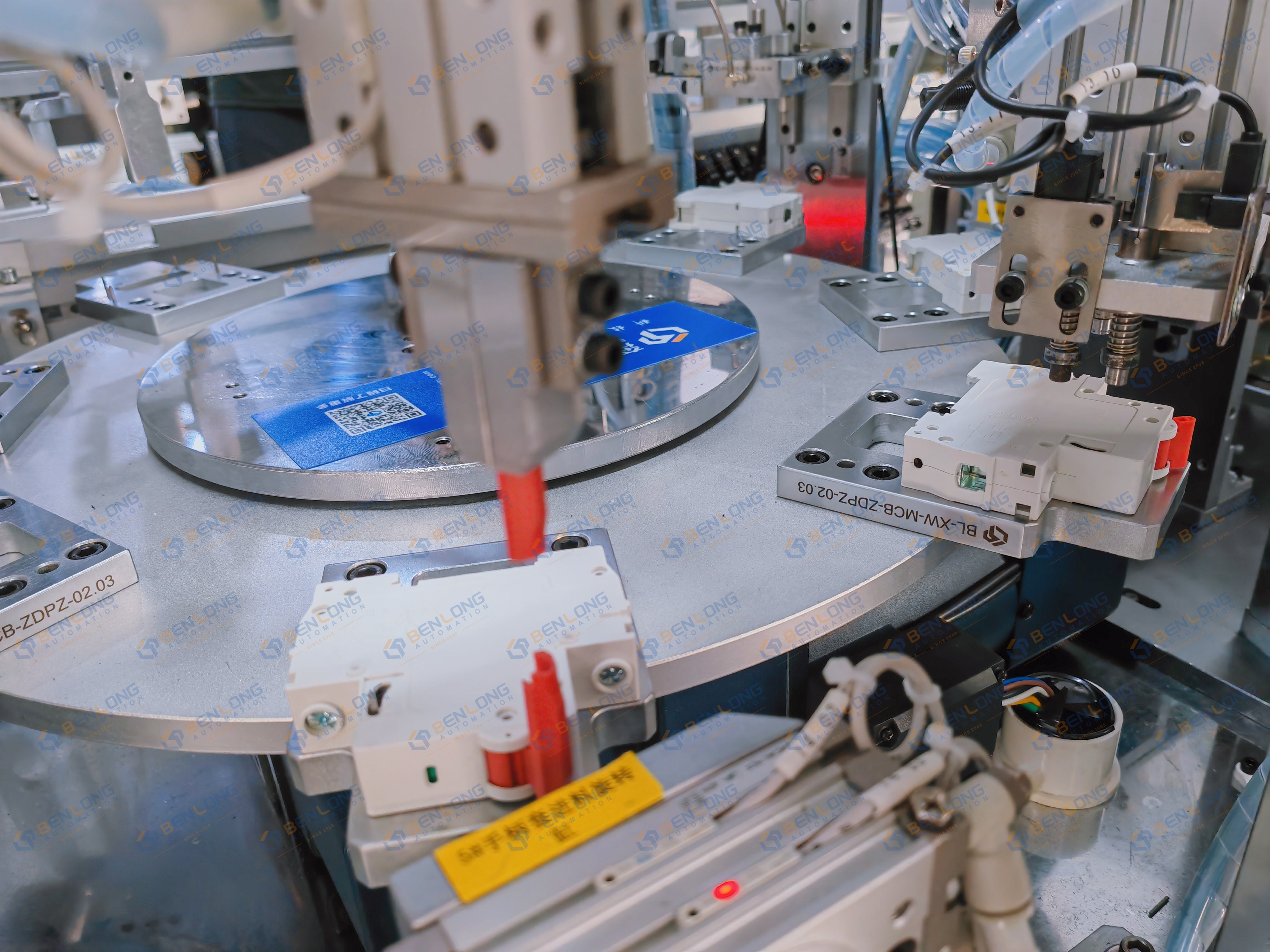

MCB automatic multipole‌ assembly machine

Process Flow：

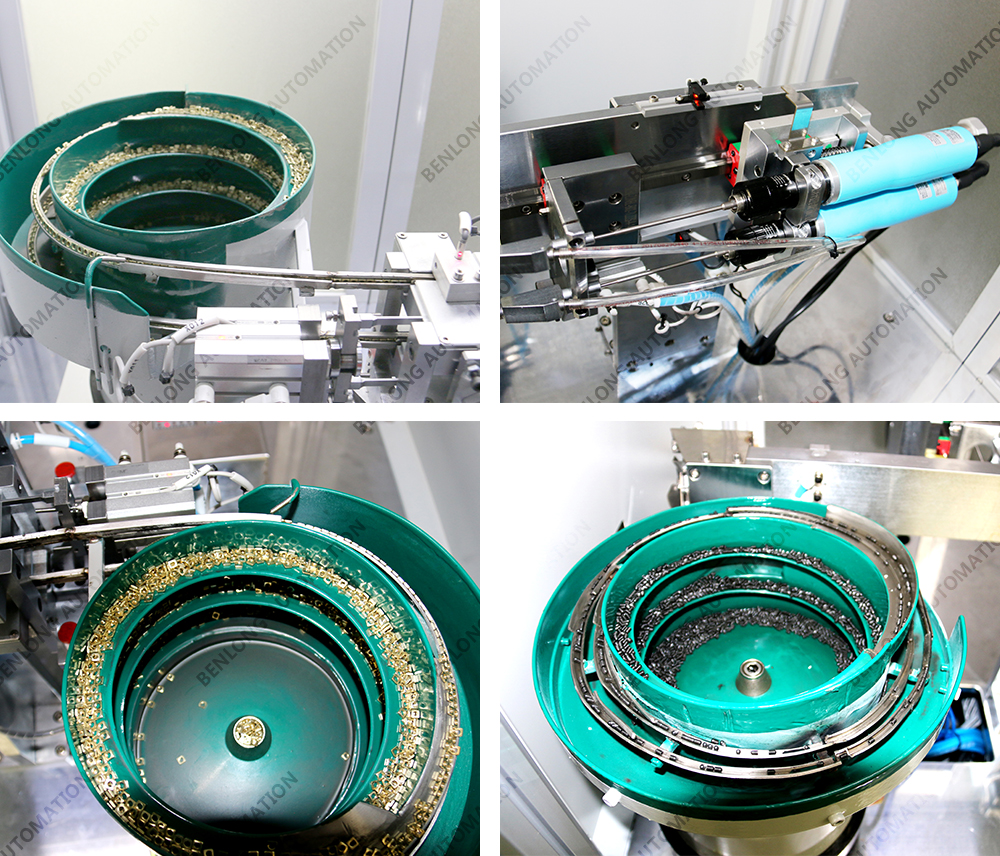

1. Single-pole Feeding

Automatically load single-pole MCB units into the assembly station.

2. Pole Alignment & Positioning

Precisely align each single-pole unit to ensure correct orientation for multipole connection.

3. Shaft Insertion (Connecting Shaft Assembly)

Insert the metal connecting shaft (or pin) through designated slots to link the poles together.

4. Handle Assembly

Install and fix the common operating handle to synchronize pole operation.

5. Finished Multipole Qutput

Transfer assembled multipole CB (2P, 3P, 4P) to the output station.

1, equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;

2, equipment compatibility and production efficiency: can be customised according to customer requirements.

3、Assembly mode: according to the different production process and requirements of the product, it can realise the automatic assembly of the product.

4、Equipment fixture can be customised according to the product model.

5、Equipment with fault alarm, pressure monitoring and other alarm display functions.

6, Chinese and English version of the two operating systems.

7、All core parts are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan and so on.

8、Equipment can be equipped with optional functions such as “Intelligent Energy Analysis and Energy Saving Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.

9、It has independent independent intellectual property rights.
