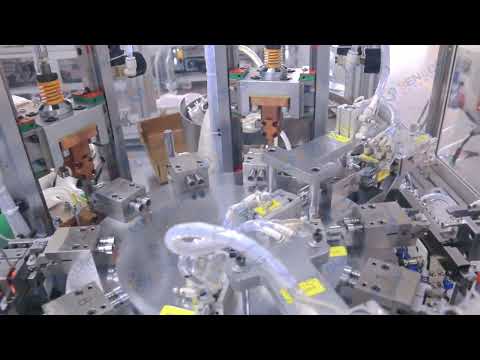

MCB Bi-metal Support Frame automatic welding machine

The main functions of this machine are:

High-precision positioning: Welding the core component of the MCB thermal trip assembly—the Bi-metal strip—to its support frame/carrier or connectors.

Automatic and efficient: Achieving batch, rapid, and high-quality welding to ensure the accuracy and reliability of the thermal trip mechanism.

    Contact us
    Product Details

    High-Precision Automatic Welding System for MCB Components

    The MCB Bi-metal Support Frame Automatic Welding Machine is an essential solution for high-volume circuit breaker manufacturing. Engineered for precision, it utilizes advanced automated techniques to weld the bi-metal thermal strip securely onto its carrier frame. This system guarantees sub-millimeter accuracy and joint reliability, critical for superior thermal tripping performance. Dramatically boost your production throughput while maintaining zero-defect quality in this fundamental MCB component.

    2.jpg  3.jpg5.jpg
