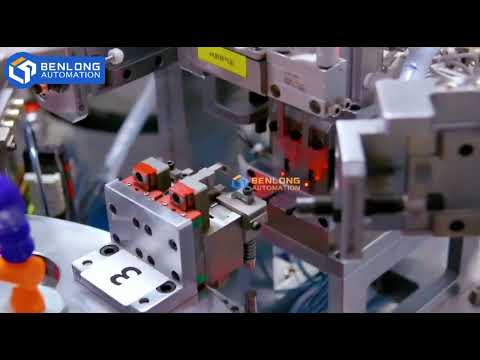

MCB magnetic trip set automatic welding machine

Magnetic Trip Unit Precision Welding System

This system automates the critical task of joining solenoid coil leads to the MCB current path. Utilizing advanced micro-welding techniques, it delivers ultra-low resistance, high-integrity connections essential for the fast and reliable short-circuit protection mechanism. Significantly enhance component consistency and manufacturing throughput

  • Machine power supply voltage: 380V±10%, 50Hz±1Hz Production cycle time: 2.5~3 seconds/pcs
  • Total machine power: 80KW Welding time: 1-999 seconds can be set arbitrarily.
Contact us
Product Details


High-Speed Automated Welding System for MCB Magnetic Units

This advanced equipment is designed to precisely weld the delicate components of the MCB magnetic trip unit. It performs high-integrity joining of the solenoid coil leads to the internal current path, ensuring minimal contact resistance and maximum responsiveness during short-circuit events. Features include integrated wire stripping, precise component alignment, and sophisticated laser or micro-resistance welding technology to deliver consistent, ultra-low-resistance welds. Achieve unmatched throughput and component reliability for your magnetic protection mechanisms.
