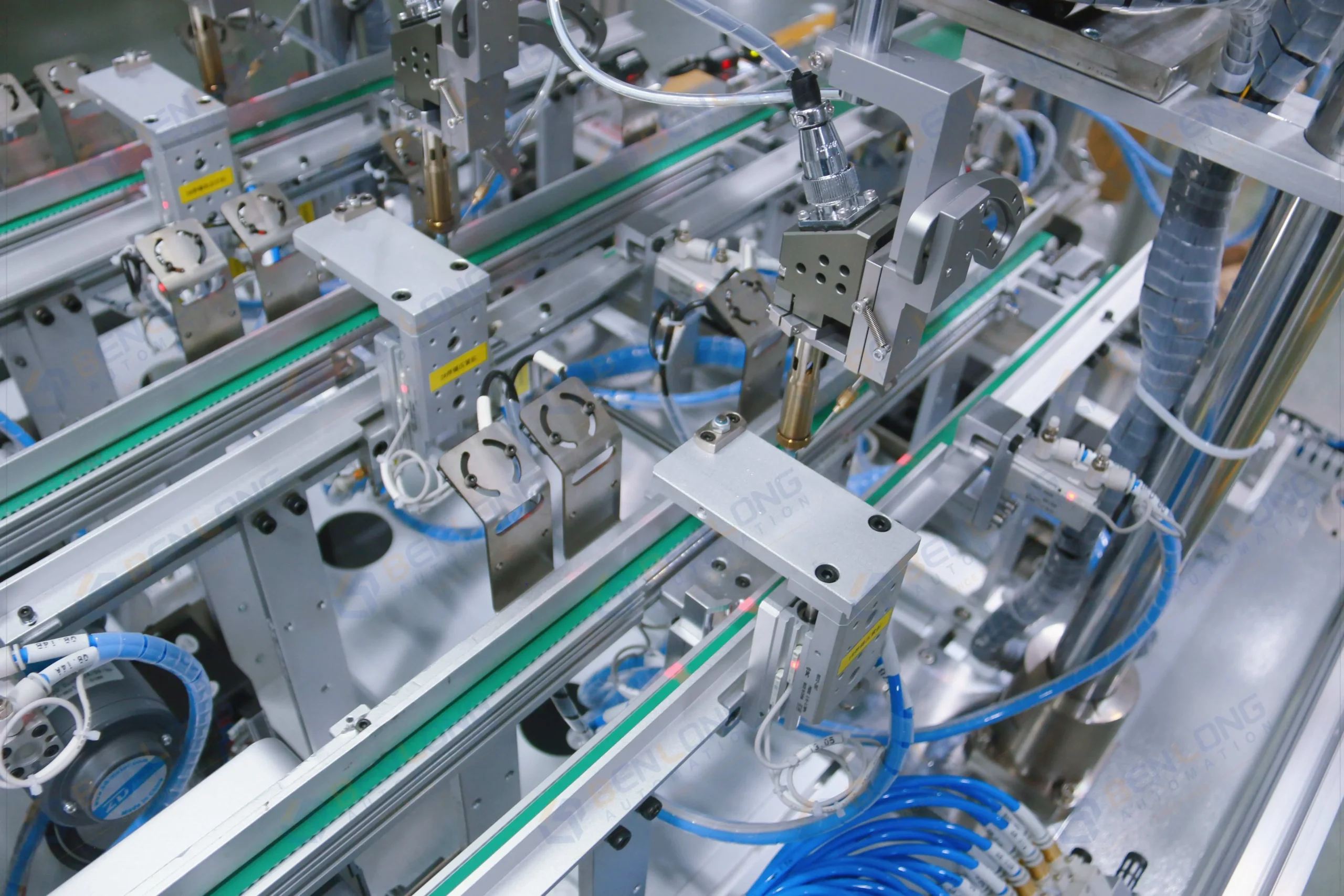

RCBO PCBA automatic soldering machine

Process Flow:

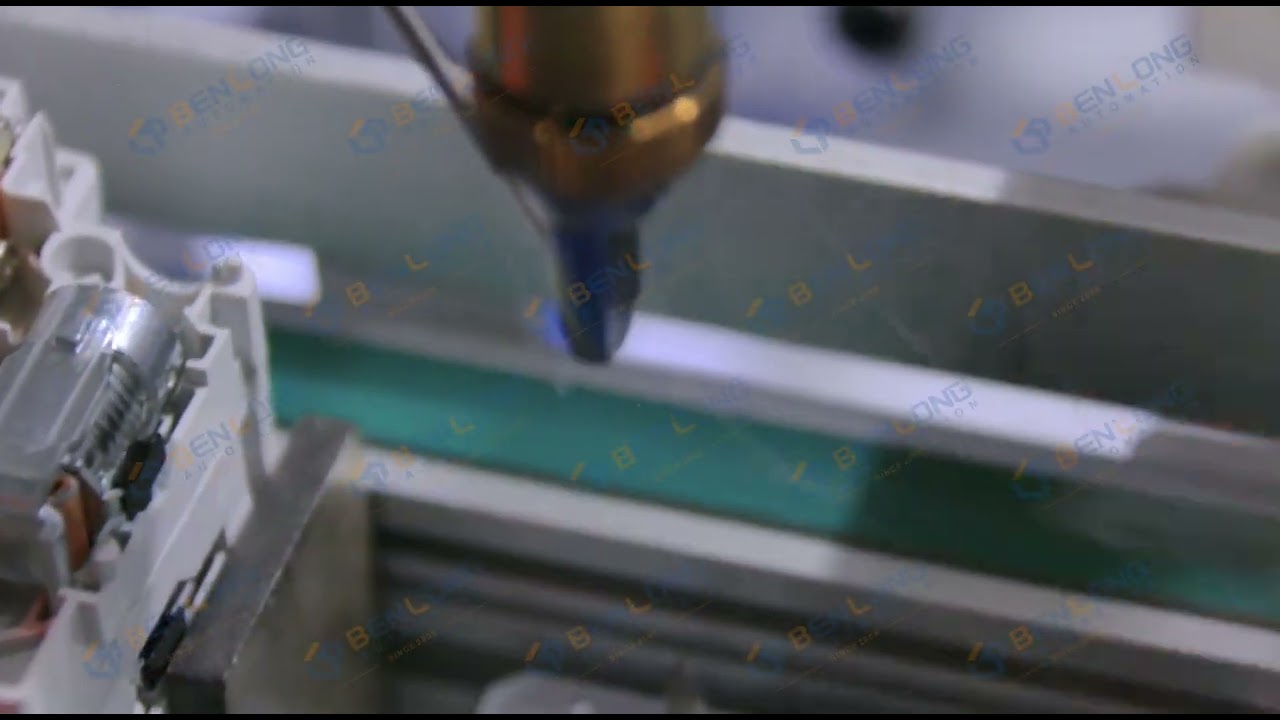

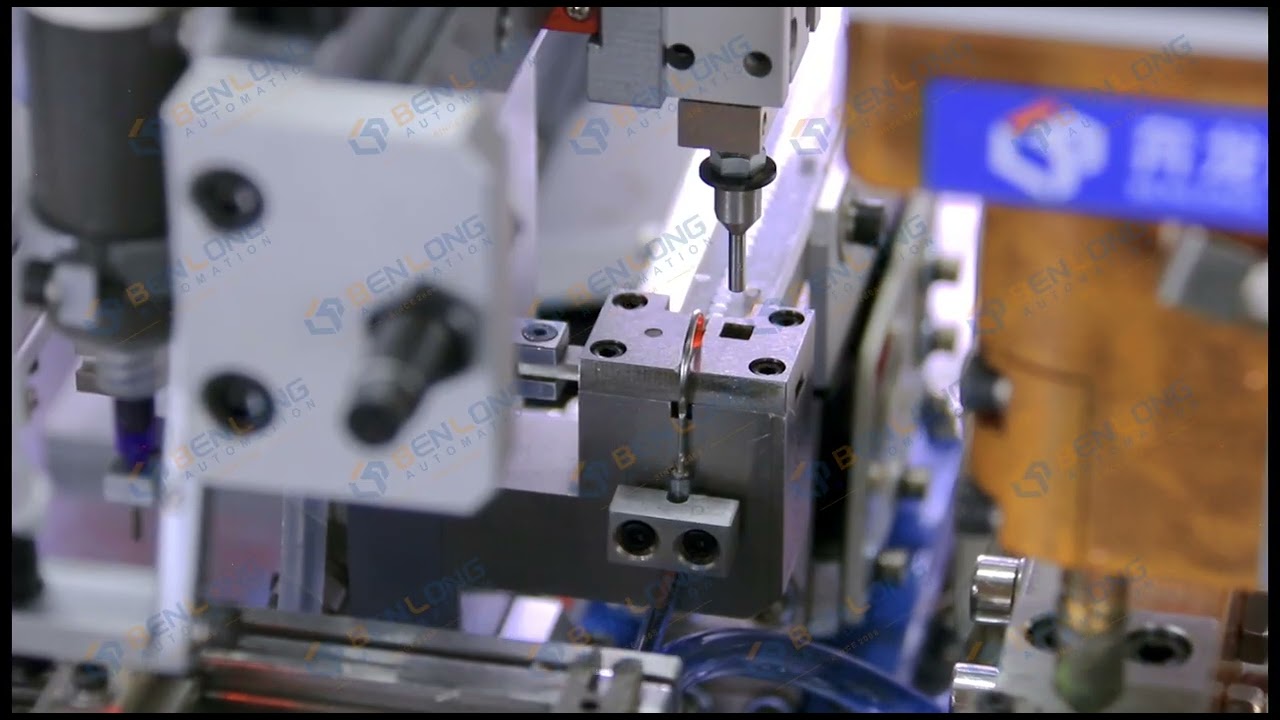

(Before starting the equipment, the manual operator sets the equipment parameters to the specified values ​​for the products to be produced.) Products from the previous process enter this equipment → Automatic material separation and grouping → The servo module automatically pushes the products to different welding conveyor lines (a total of 3 conveyor lines) → Automatic material separation and grouping → Automatic detection of product placement → Automatic lifting and positioning of the product after placement → Simultaneous automatic welding of 3 positions A → Automatic conveying to the unloading area → Products are automatically merged into one conveyor line → Automatic material separation and grouping → Automatic welding of another position B of the product → Products are automatically conveyed to the conveyor line at the equipment exit → This cycle is repeated.
